EV Motors and Controllers

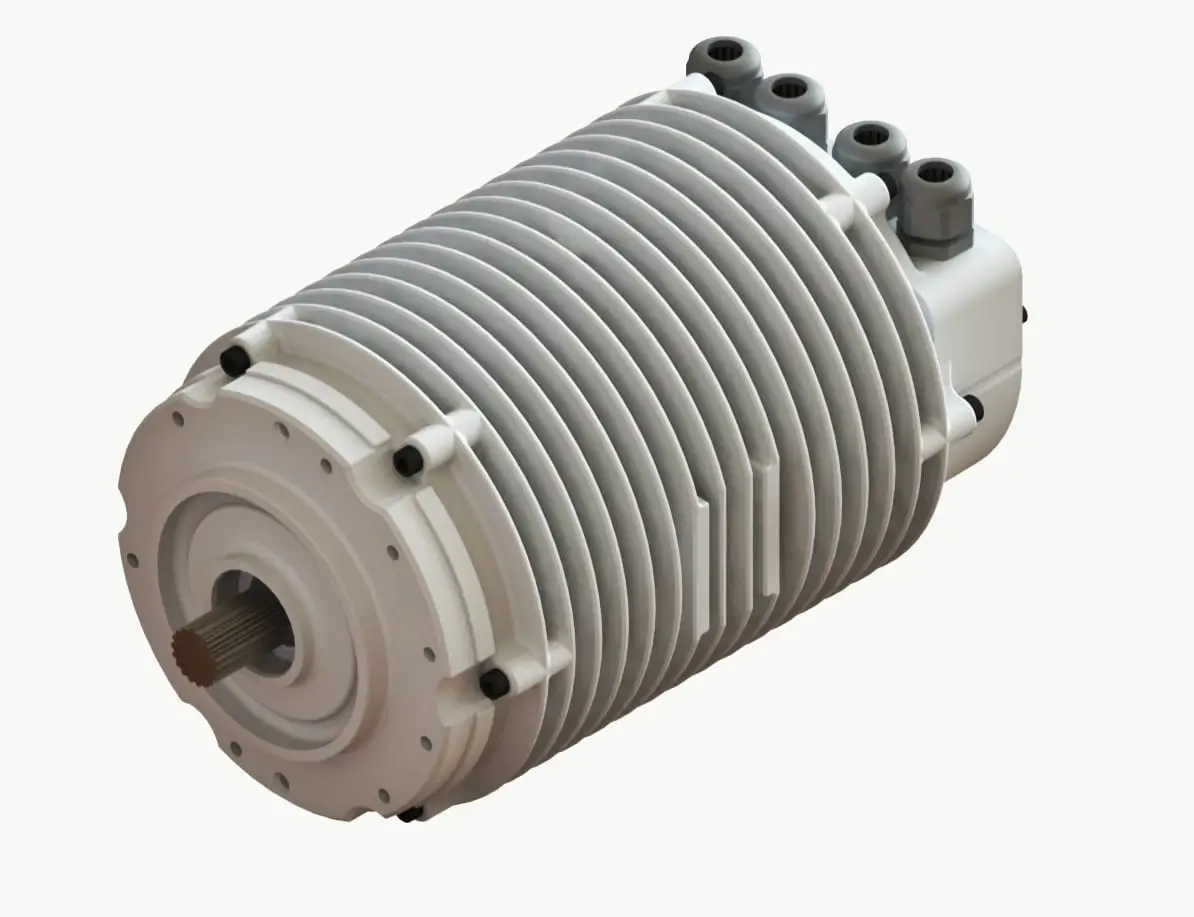

EV Motors – KSH Series
Our KSH motor series is built for demanding environments and is rugged, compact, and powerful, offering:
Key Features Include:
•
Best-in-class power density in a compact form factor.
Best-in-class power density in a compact form factor.
•
Full power output even in extreme ambient conditions, enabled by the use of high-grade materials.
Full power output even in extreme ambient conditions, enabled by the use of high-grade materials.
•
IP67-rated protection as per IEC 60529, ensuring reliable performance in harsh environments.
IP67-rated protection as per IEC 60529, ensuring reliable performance in harsh environments.

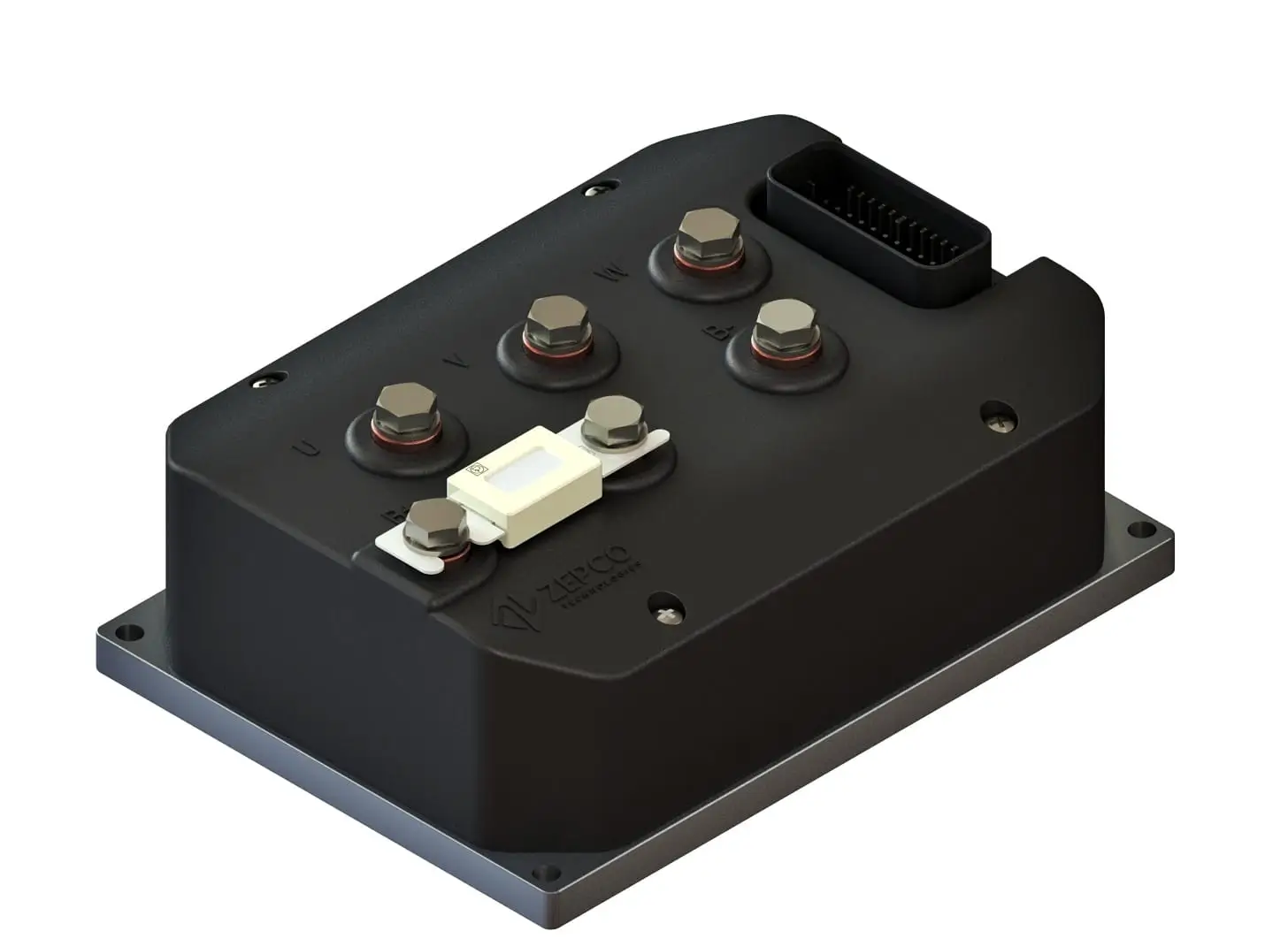

EV Controllers – KSH Series
The KSH series motor controller is designed for BLDC and PMSM motors, offering high energy efficiency, a compact design, and rugged reliability tailored for demanding EV traction applications.
With top-side cooled MOSFETs, it ensures excellent thermal management even in harsh operating conditions, enhancing both performance and operational lifespan.
Key Features Include:
•
Max Torque-per-Amp vector control with efficient flux weakening for an extended high-speed operating range.
Max Torque-per-Amp vector control with efficient flux weakening for an extended high-speed operating range.
•
Space Vector PWM with synchronous rectification to minimize conduction losses.
Space Vector PWM with synchronous rectification to minimize conduction losses.
•
Integrated VCU and ECU functionality for seamless control in 3-wheeler passenger vehicles (L5M).
Integrated VCU and ECU functionality for seamless control in 3-wheeler passenger vehicles (L5M).
•
Suitable for cargo 3-wheelers and 4-wheelers (L5N & N1), golf carts, e-tractors, and other off-road EV applications.
Suitable for cargo 3-wheelers and 4-wheelers (L5N & N1), golf carts, e-tractors, and other off-road EV applications.
•
Regenerative braking during deceleration and zero-throttle conditions.
Regenerative braking during deceleration and zero-throttle conditions.
•
Hill-Hold functionality (up to 10 seconds) and smooth Hill-Assist for gradient starts.
Hill-Hold functionality (up to 10 seconds) and smooth Hill-Assist for gradient starts.
•
Functional Safety compliant with ARAI AIS-038 standards.
Functional Safety compliant with ARAI AIS-038 standards.
•
Built-in protections against stall, overspeed, over-current, and under-voltage conditions.
Built-in protections against stall, overspeed, over-current, and under-voltage conditions.
•
Smart temperature foldback above 85°C with automatic cut-off at 100°C.
Smart temperature foldback above 85°C with automatic cut-off at 100°C.
•
CAN 2.0 compliant for seamless communication and diagnostics.
CAN 2.0 compliant for seamless communication and diagnostics.
Extended Capabilities:
•
Integrated VCU and ECU functionality for complete vehicle-level control.
Integrated VCU and ECU functionality for complete vehicle-level control.
•
In-house development of advanced Battery Management Systems (BMS).
In-house development of advanced Battery Management Systems (BMS).
•
Design and supply of custom battery packs for 3-wheelers, 4-wheelers, and off-road EV applications.
Design and supply of custom battery packs for 3-wheelers, 4-wheelers, and off-road EV applications.
